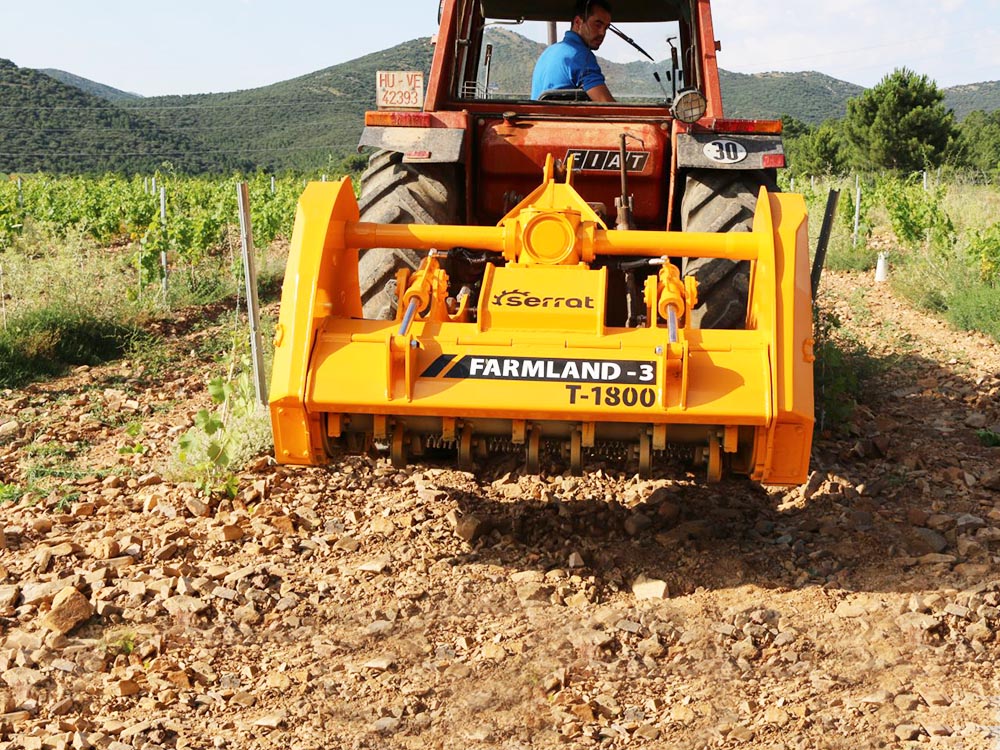

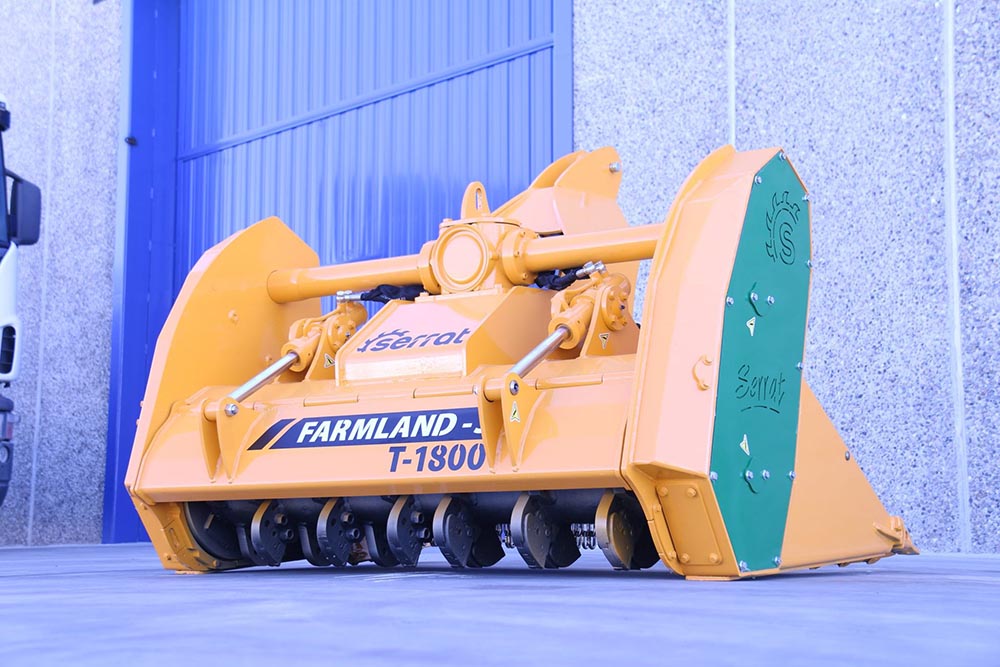

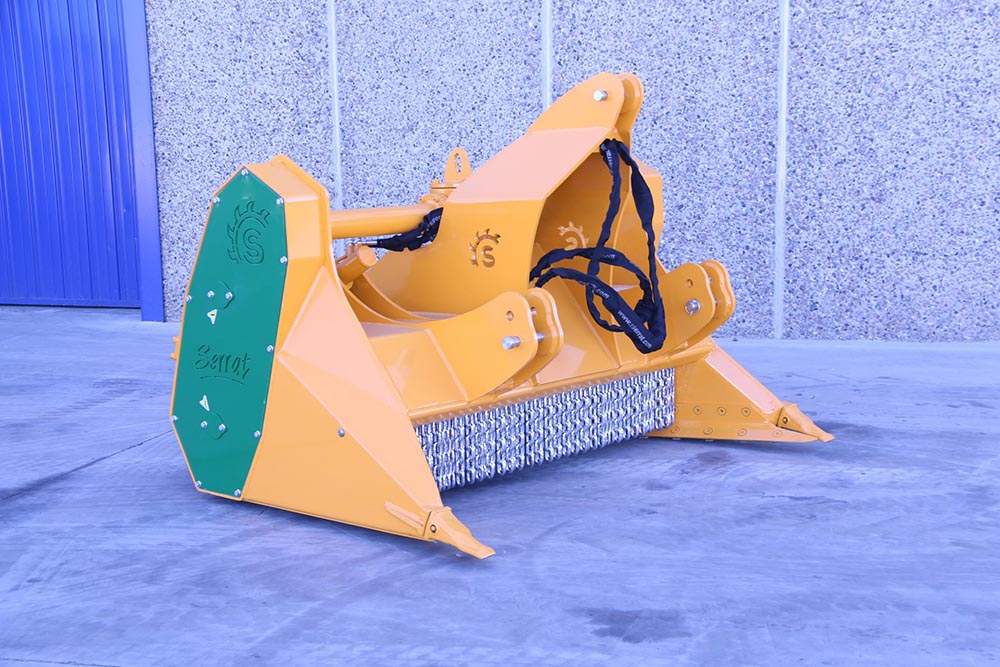

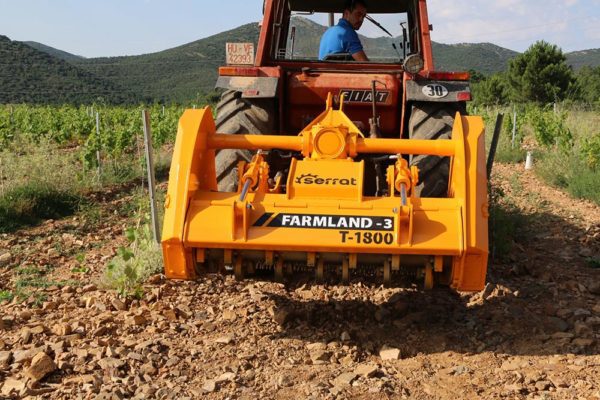

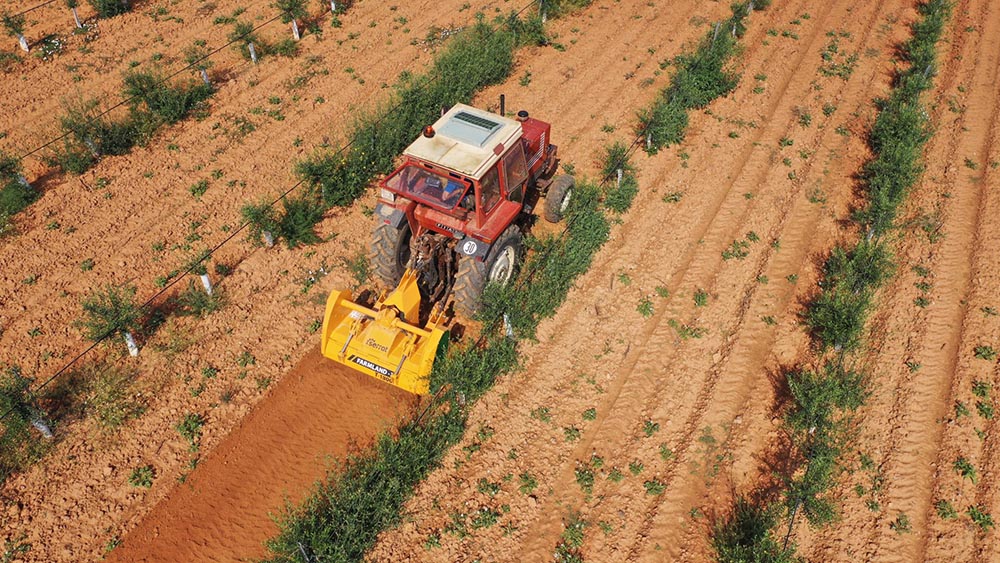

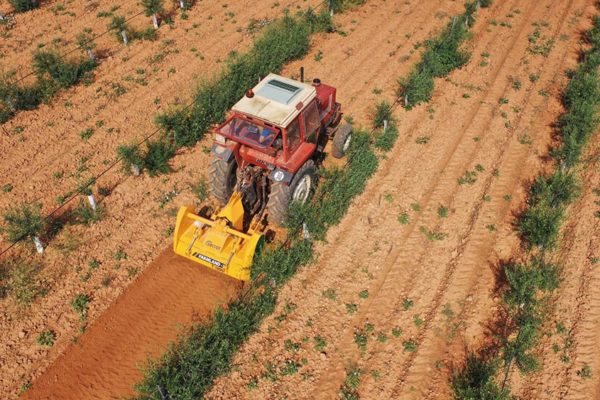

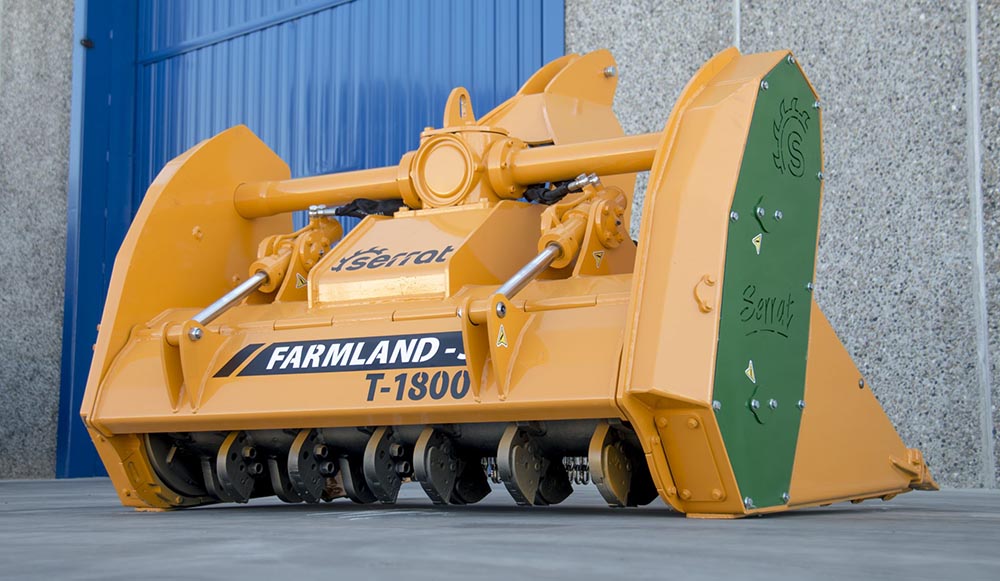

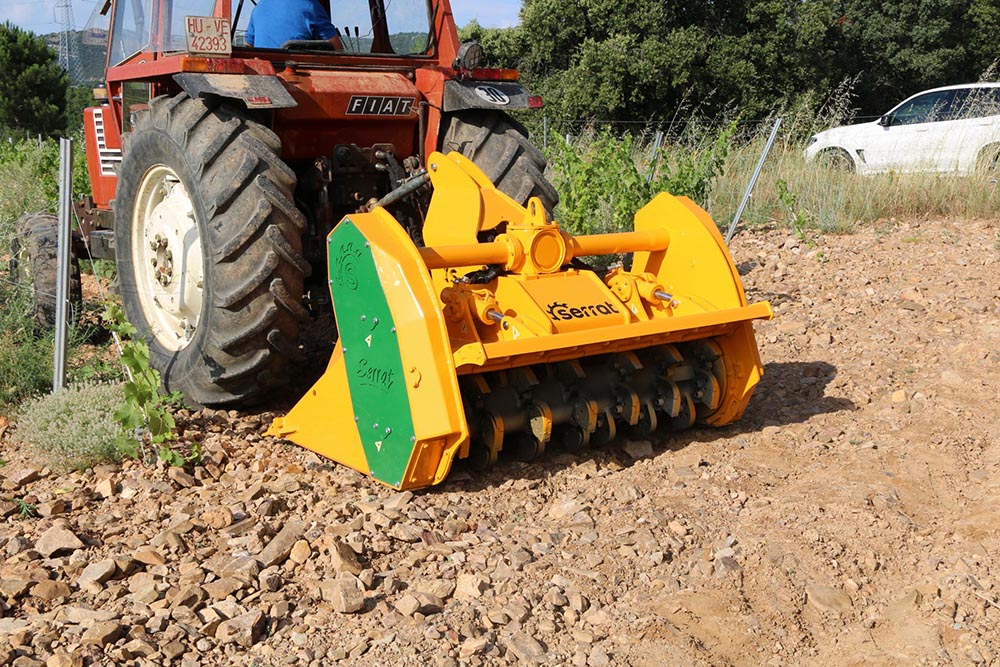

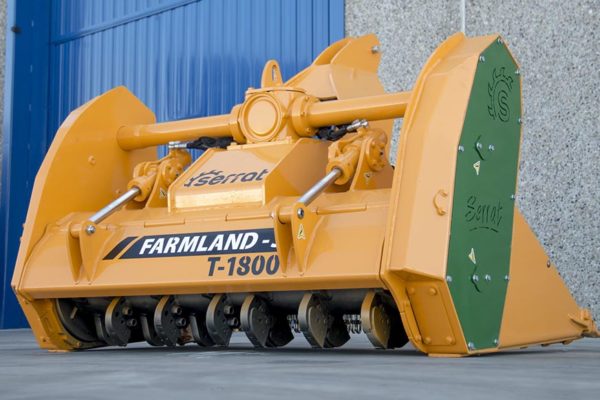

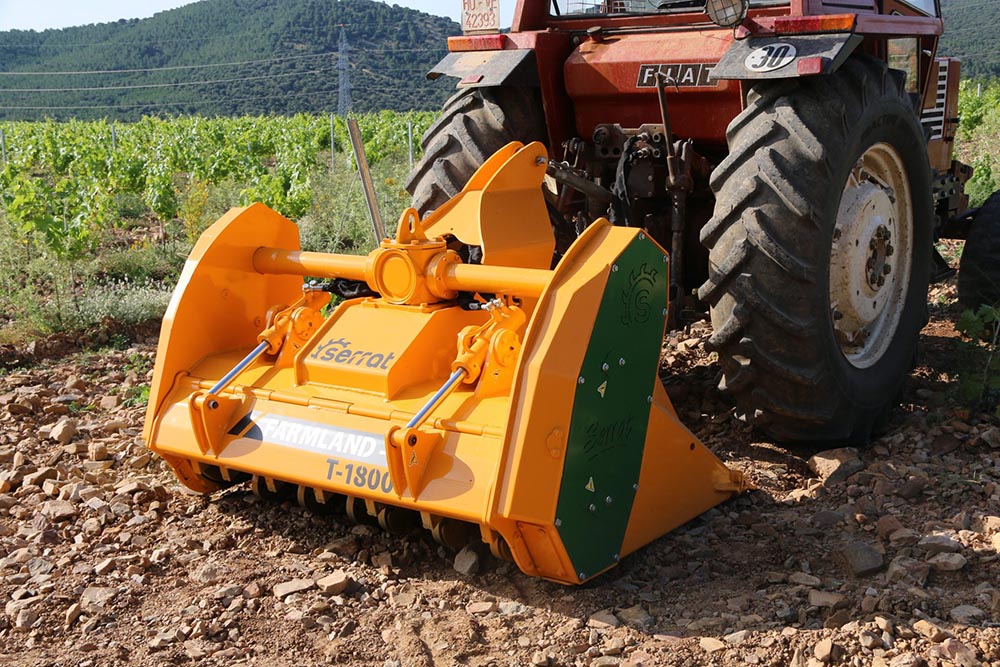

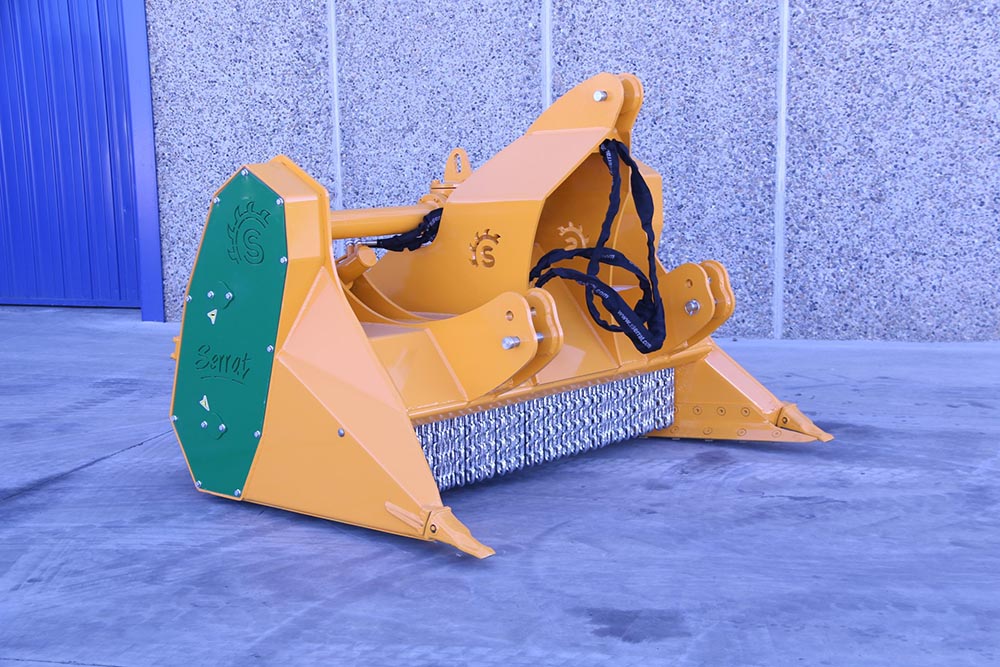

Soil preparation machine up to a depth of 30 cm, for tractors between 130 – 150 HP. Transforms forest land, with stumps and rocks, in land for cultivation avoiding accidents in later processes.

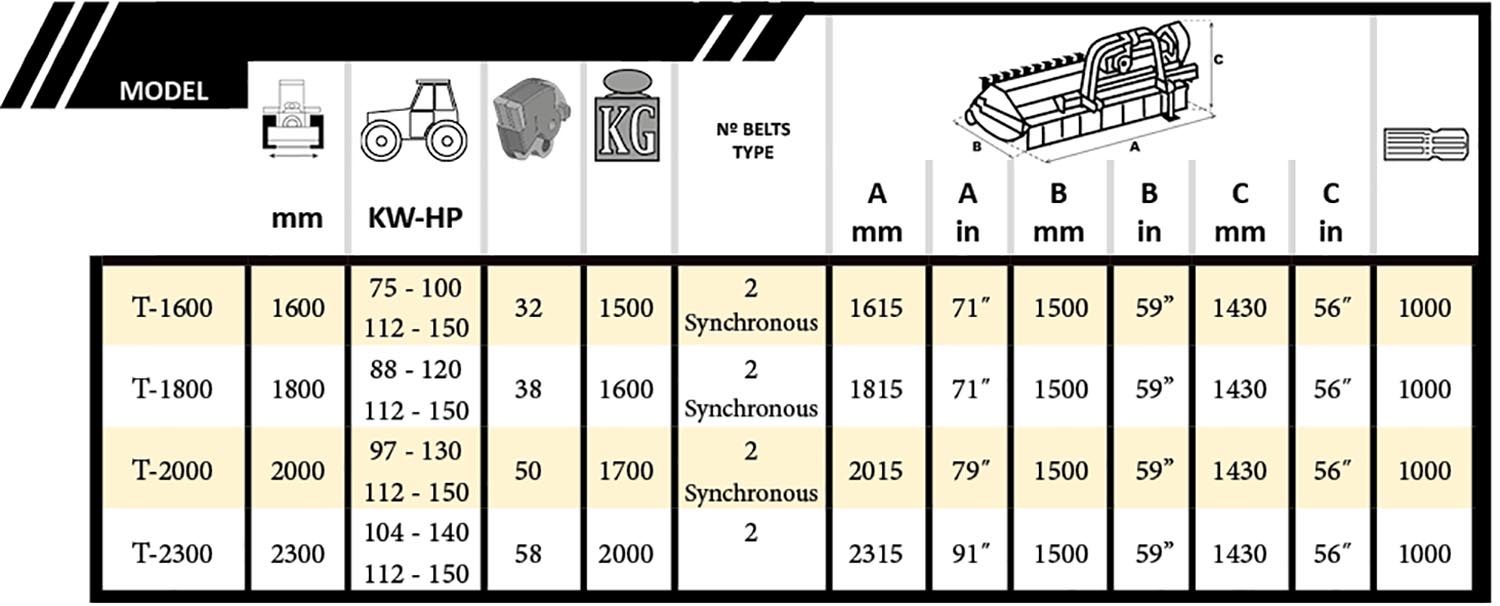

Characteristics
Steel-plate chassis, thickness 10 mm.
Rotor FIXE TOP of Ø 470 mm.
Gearbox with freewheel included.
Double synchronous belt transmission.
Supports of bearing rotor in steel.
Oscillating bearings of double row of rollers.
Double ploughshare for opening the land.
PTO 1.000 rpm.
Front skid shoes.
Rear hydraulic hood.
Internal reinforcements in chassis.
System antiwire in rotor.
Compact drive cover.
Transmission by cardan to side belts.
Model built under EC Normative.
Safety indicators visible to personnel.
