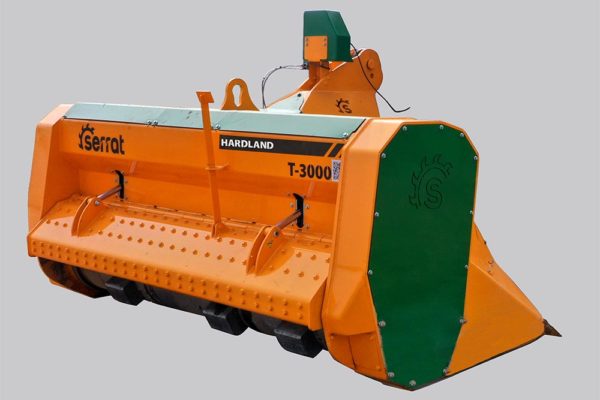

Soil preparation machine up to a depth of 500 mm, for tractors between 350 – 650 HP. Transforms forest land, with stumps and rocks, in land for cultivation avoiding accidents in later processes.
Mulching system with rotor of slow speed. It can work with granite

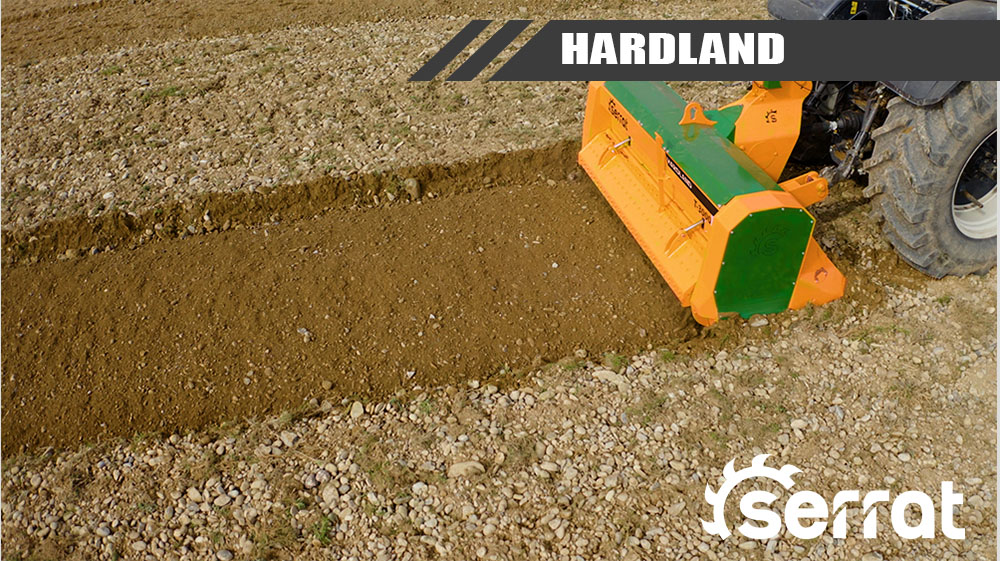

Characteristics
Steel-plate chassis, thickness 20 mm.
Solid rotor Harland Ø 625 mm.
Gearbox Synkrodos.
Double synchronous belt transmission.
Direct transmission with Synchrochain belts.
Supports of bearing rotor in steel.
Oscillating bearings of double row of rollers.
Double plow for opening the ground with screwed anti-wear.
Heavy tooth with tungsten inserts.
PTO 1.000 rpm.
Rear hydraulic hood.
Bolted internal chassis reinforcements.
Replaceable wear rings on the rotor.
Compact drive cover.
Centralized greasing.
Model built under EC Normative.
Advantages Serrat

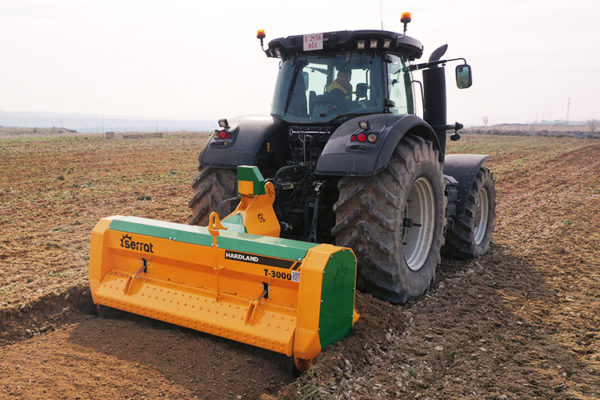

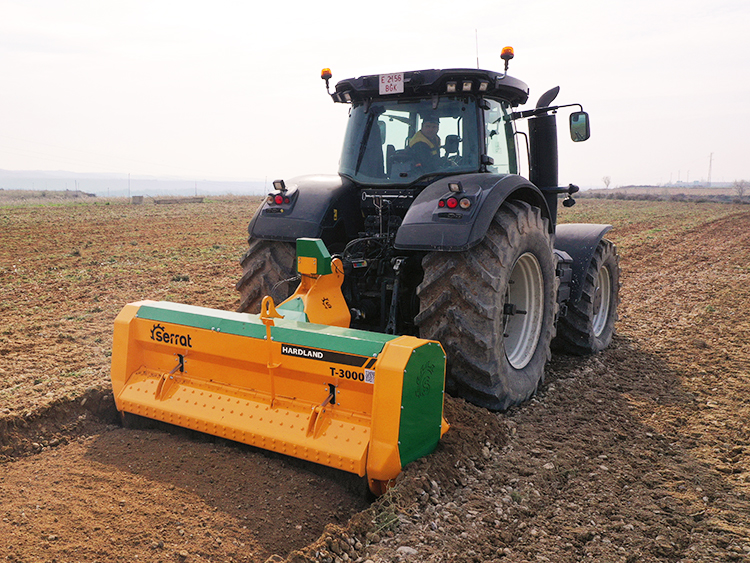

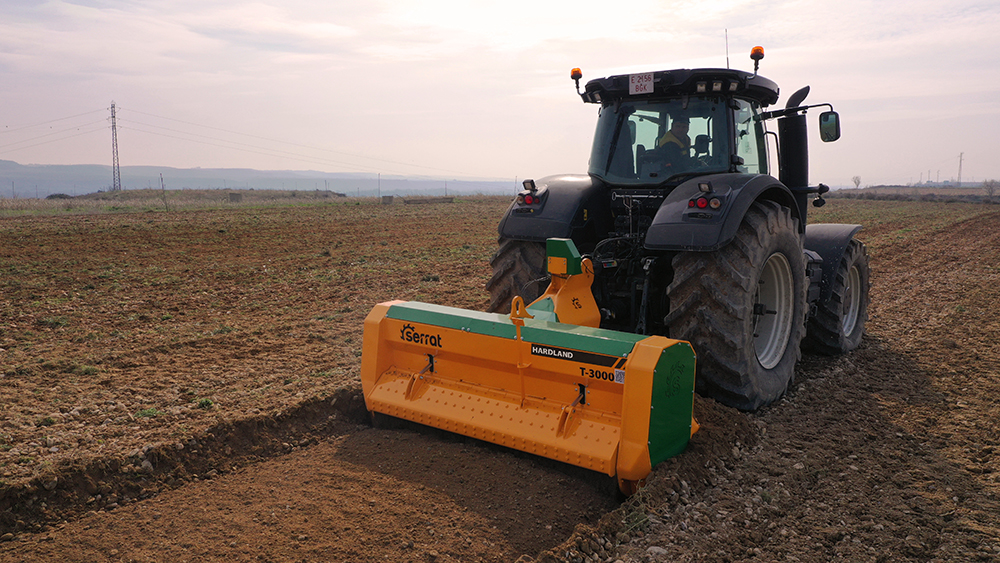

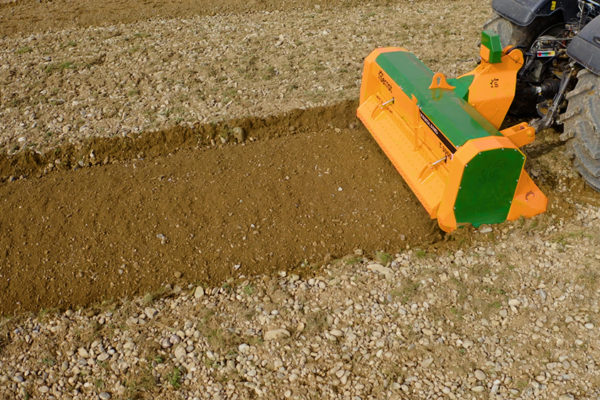

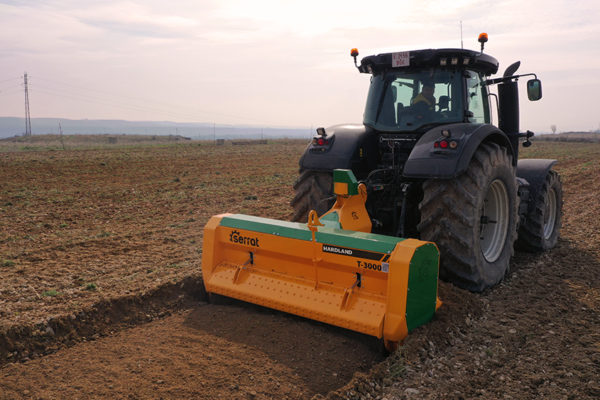

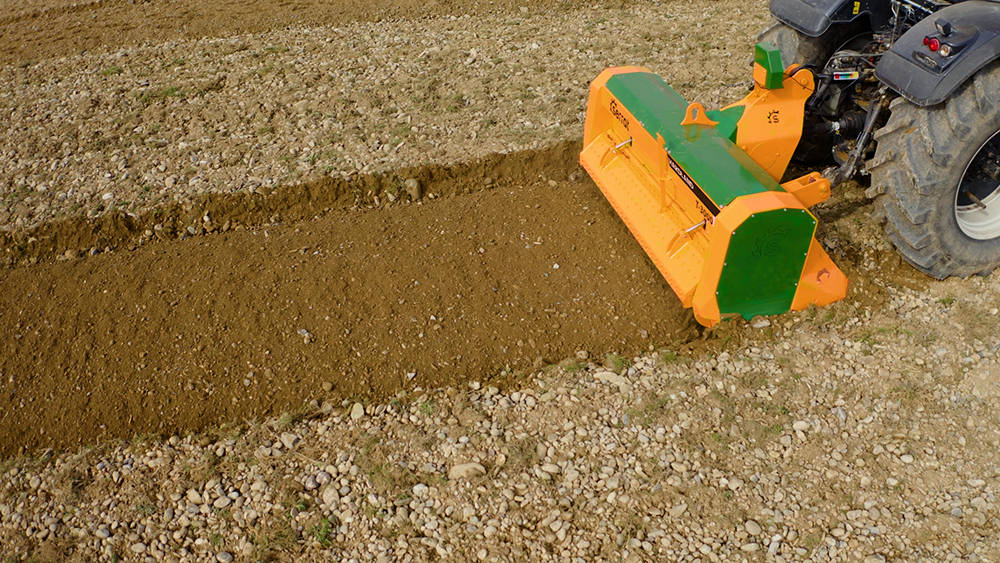

HARDLAND IN ACTION
REAR HYDRAULIC HOOD
COMPACT DRIVE COVER
FIXE TOP SYSTEM
TRANSMISSION BY CARDAN TO SIDE BELTS

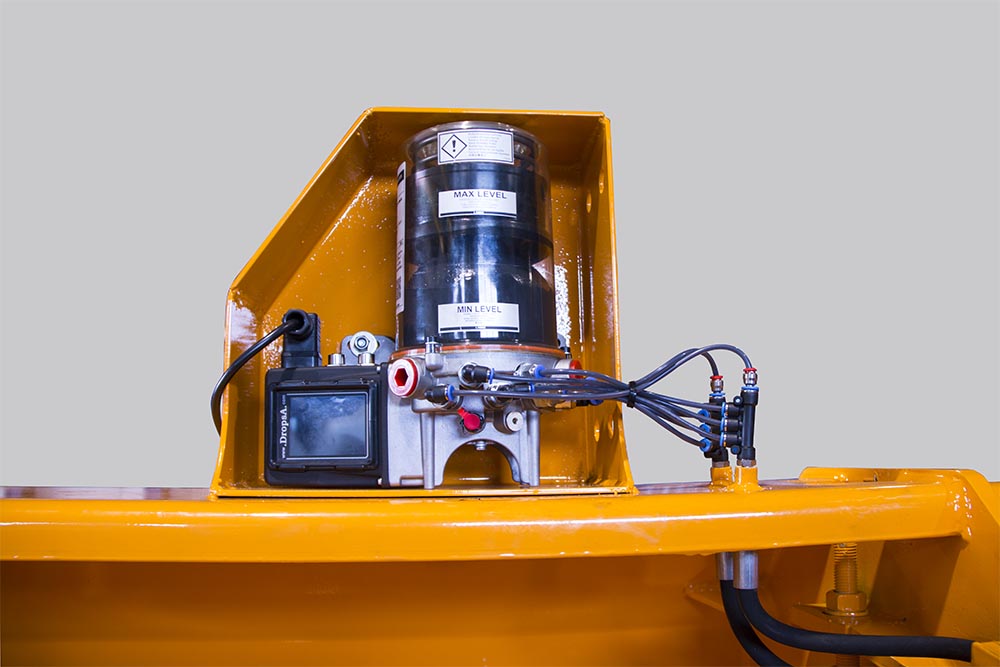

CENTRALIZED GREASING
