Tiller + 700

TILLER + 700

Soil preparation machine up to a depth of 500 mm, for tractors between 300 – 600 HP. Transforms forest land, with stumps and rocks, in land for cultivation avoiding accidents in later processes.

Characteristics

File Tiller + 700

Steel-plate chassis, thickness 12 mm.


Rotor FIXE TOP of Ø 700 mm.


Centralising greasing system


Gearbox SERRAT for 600 HP with Synkrodos-600.


Double synchronous belt transmission.


Supports of bearing rotor in steel.


Oscillating bearings of double row of rollers.


PTO 1.000 rpm.

Rear hydraulic hood.


Chassis internal reinforcements.


Anvil interchangeable.


System antiwire in rotor.


Compact drive cover.


Hydraulic levelling roller.


Model built under EC Normative.


Safety indicators visible to personnel.

Advantages Serrat

Sekurlast
Fixe Top
Greasing system
Synkrodos 600

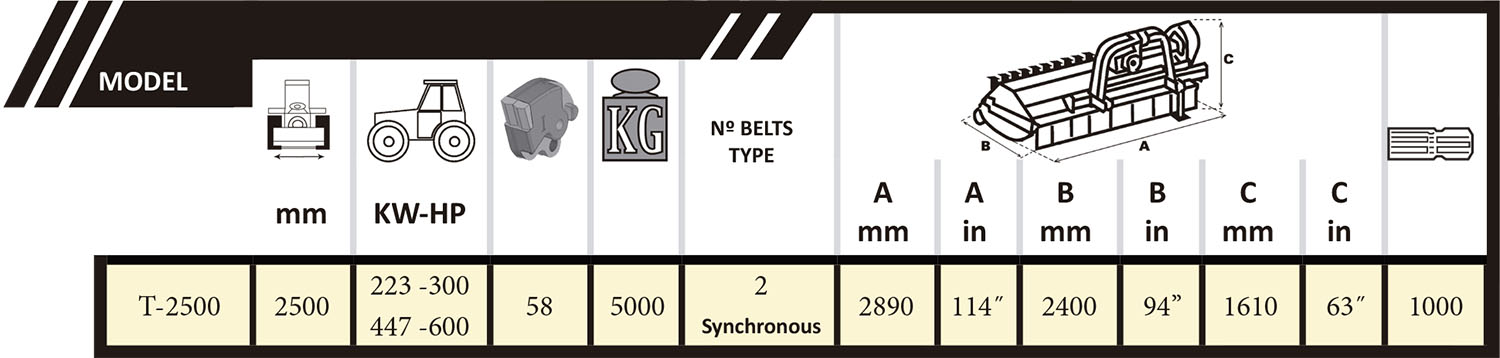

Tabla Tiller + 700

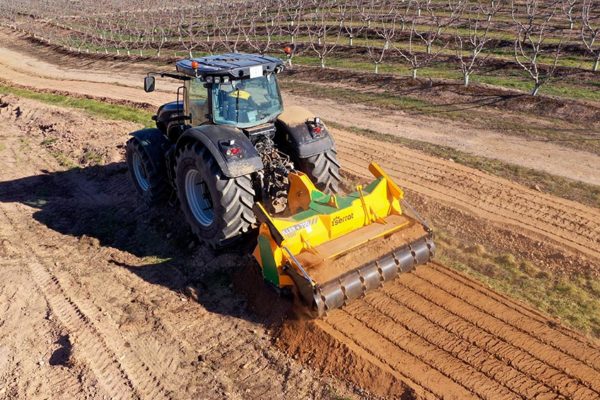

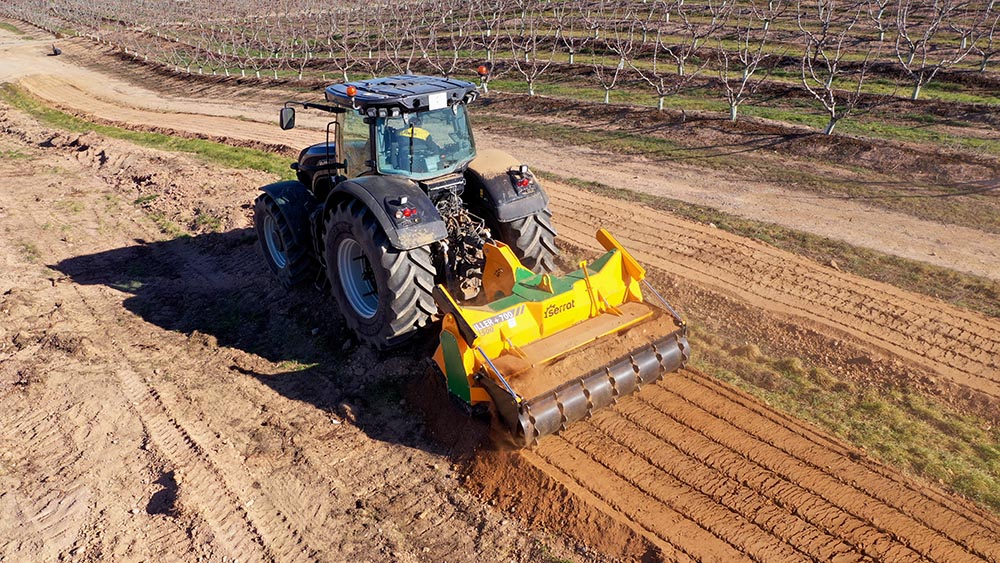

TILLER + 700 IN ACTION

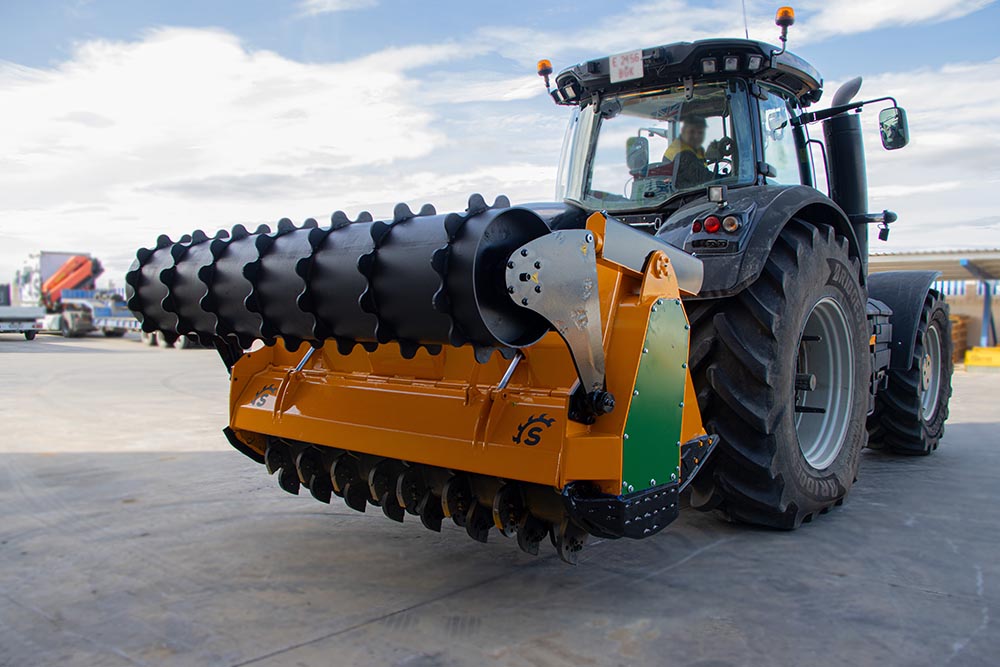

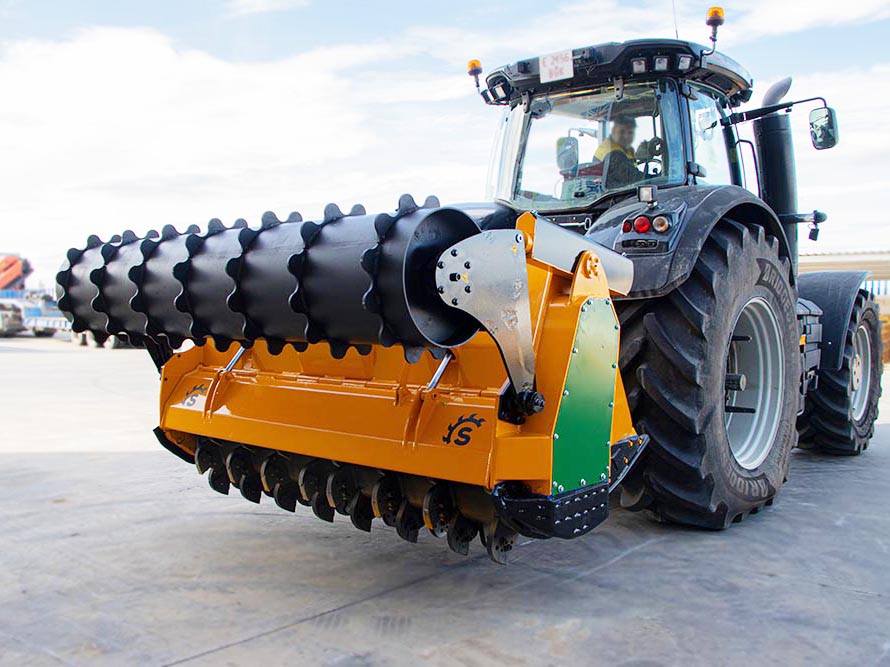

REAR HYDRAULIC HOOD

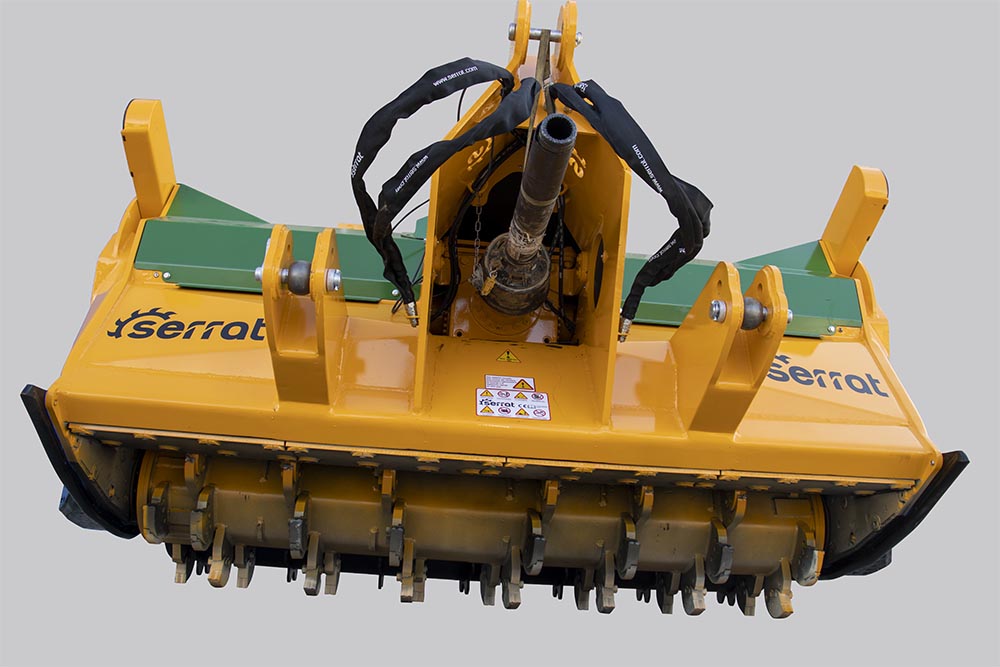

COMPACT DRIVE COVER

FIXE TOP SYSTEM

CENTRALIZED GREASING

Discover Tiller + 700
