Biomass 400

BIOMASS 400

Wood recovery crusher machine for coupling to tractors of more than 300 CV up to 500 HP.
HIDRAHELP starting system.
Crusher with hydraulically operated reversible double feeder (BRALAKC system), rotor with RHENDUEL system, launch turbine and hydraulic orientation nozzle that allows direct unloading to the truck.
It allows to work with wood up to 20 – 25 cm.
Granulometry suitable for crushed wood to be used directly in biomass boilers.

Characteristics

File Biomass 400

3 point hitch category IV.


on-wear steel-plate chassis.


Double hydraulic feeder, system BRALAKC.


Synchronous belts transmission.


Rotor with system RHENDUEL Ø 625 mm.


Triple feed chain.


Reaction-and-impulse turbine.


Start system HIDRAHELP.

PTO 1.000 rpm.


Front skid shoes.


Cardan transmission with mechanical protection.


Launching nozzle with hydraulic orientation. Download a 4 m.


Model built under EC Normative.
Safety indicators visible to personnel.

Serrat Advantages

Sekurlast
Rhenduel
Bralakc

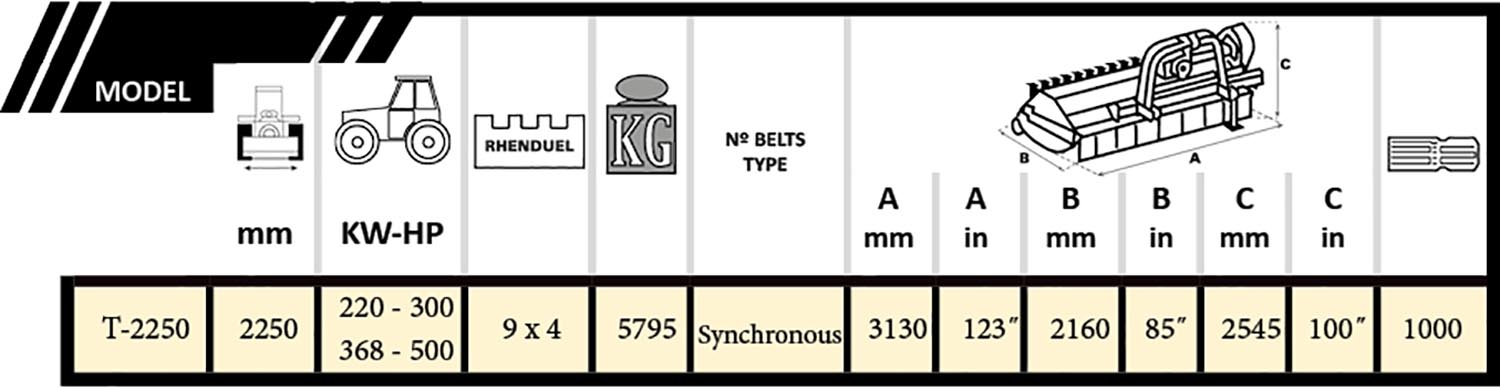

Biomass 400 tabla

BIOMASS 400 IN ACTION

REDUCER

HIGH NOZZLE

Discover Biomass 400
