DAP EVOLUTION

Offset Mulcher of high range, polyvalent, for works in agricultural margins, banks, highways, channels, roads and others clears of public works for tractor between 70 – 120 HP.
It incorporates safety system thanks to a valve positionned in the cylinder of elevation of the arm.
It has a rear hood with two positions. Angulation +90º / -65º.
Rotor POLSER of 450 mm of diameter with hammer of high edge.

Characteristics

File Dap Evolution

Non-wear steel-plate chassis, thickness 8 mm.


Rotor POLSER of Ø 450 mm.


Gearbox SERRAT until 120 HP.


3 XPC side belt transmission.


GIROSTOP System.


Hammers guaranteed against breakage.


Rear height-adjustable roller Ø 180 mm.


PTO 750 rpm.


Oscillating bearings of double row of rollers.


Front protection curtain.

Front skid shoes.


Double bearing on rear roller.


Angulation +90º/-65º.


Hydraulic lateral offset mulcher.


Supports of bearing rotor in steel.


Rear mechanical hood (2 positions).


3 point hitch – cat. 2 and 3.


Safety valve.


Model built under EC Normative.


Safety indicators visible to personnel.

Serrat Advantages

Sekurlast
Girostop
polser 450

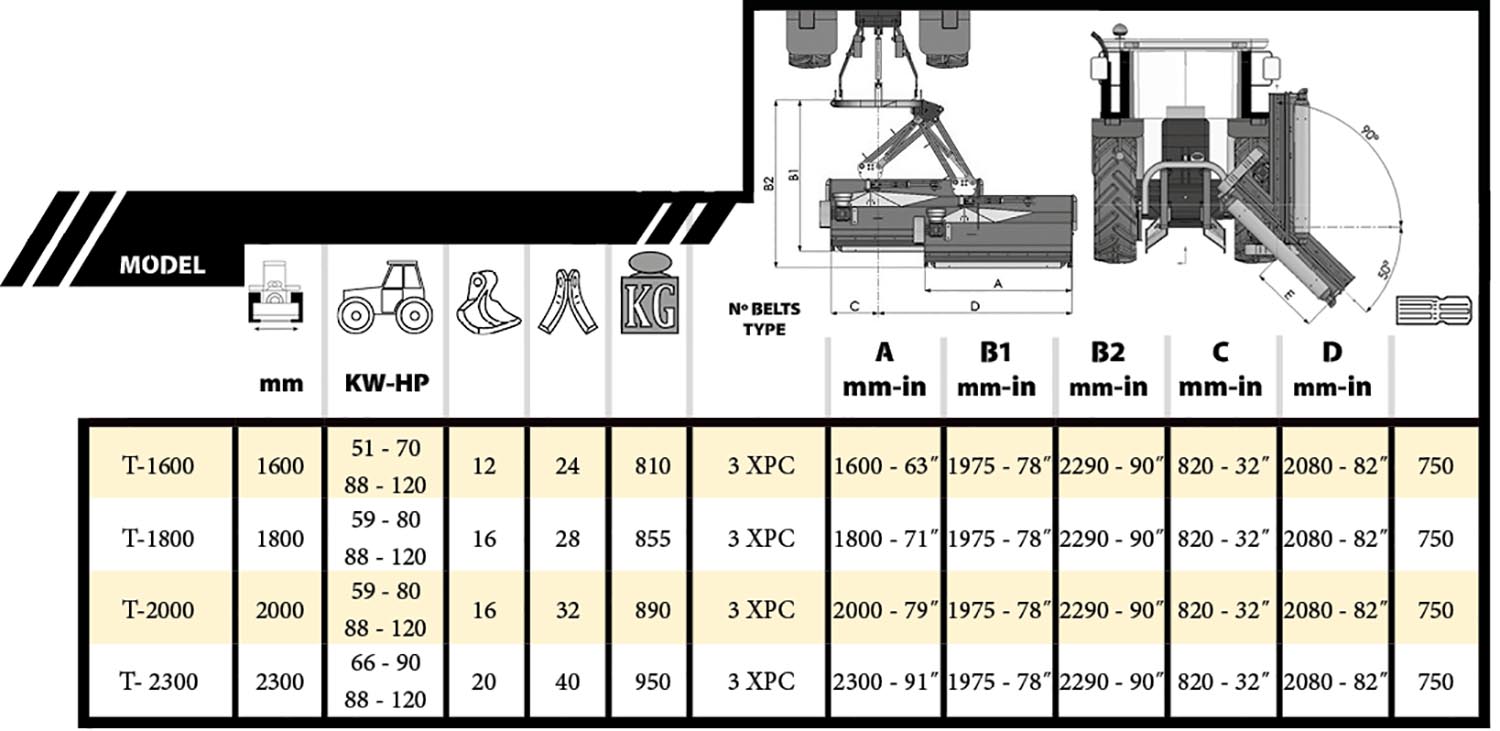

Dap Evolution tabla

DAP EVOLUTION IN ACTION

HOMOKINETIC KNOT

Discover Dap Evolution
