OLI VINA

Mulcher with reversible hydraulic feeder, for remains of vineyard, olive tree, almond-trees, etc. up to 50 mm.
With the lower root rake of variable height, we manages to raise the material of the ground, independently of the characteristics of the area.
Rear screen that delimits the grain for the perfect incorporation to the ground.

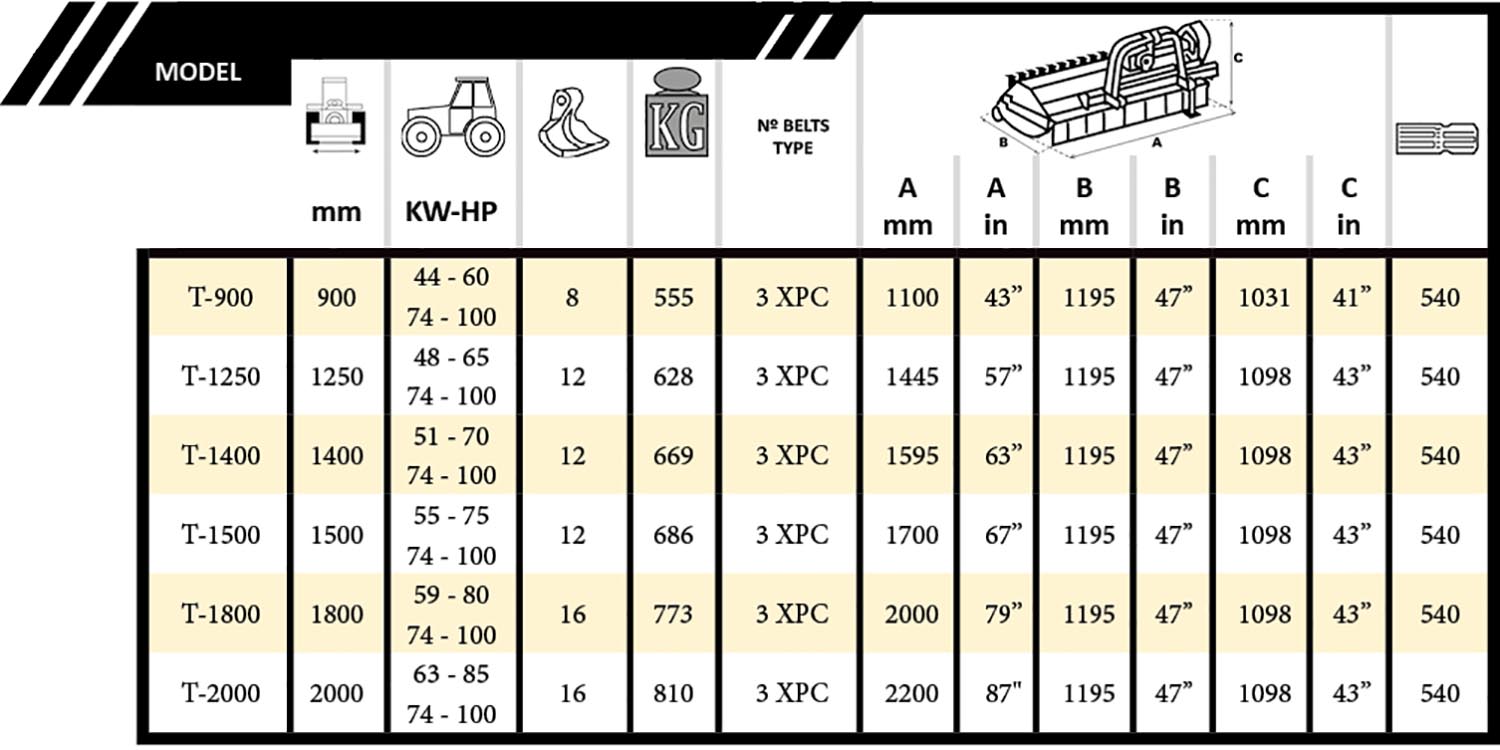

Characteristics

File Oli Vina

Steel-plate chassis, thickness 8 mm.


Tubular rotor of Ø 400 mm.


Gearbox SERRAT.


3 XPC side belt transmission.


Forged agricultural hammers SERRAT.


Feeder with system BRALAKC.


High torque hydraulic motor reversible.


Supports of bearing rotor in steel.


High speed and high strength bearings.


PTO 540 rpm.

Rear height-adjustable roller Ø 180 mm.


Feed chain.


GIROSTOP system into the bolt of the hammer.


Double bearing on rear roller.


Reversible toothed rear screen.


Side plates.


Model built under EC Normative.


Safety indicators visible to personnel.

Advantages Serrat

Sekurlast
Girostop
Bralakc
Oli Vina

OLI VINA IN ACTION

NYLON WINDROWS

MECHANICAL FEEDER TO OBTAIN HYDRAULIC AVAILABILITY IN THE BRUSHING

FREEWHEEL IN SLEEVE

RAKE SPIKES

FIXED OR PIVOTING REAR WHEELS
