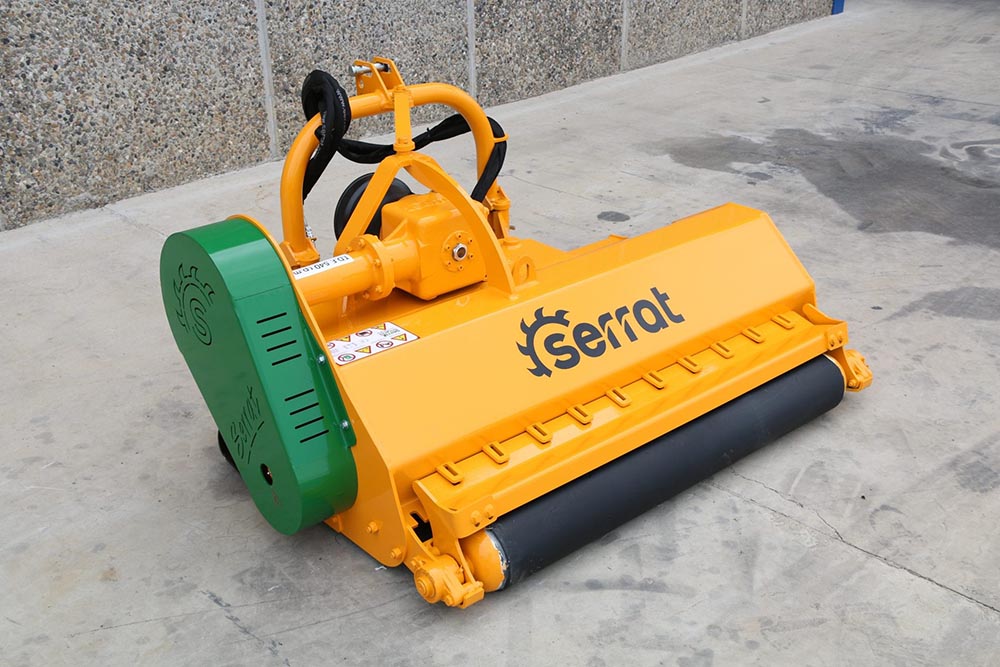

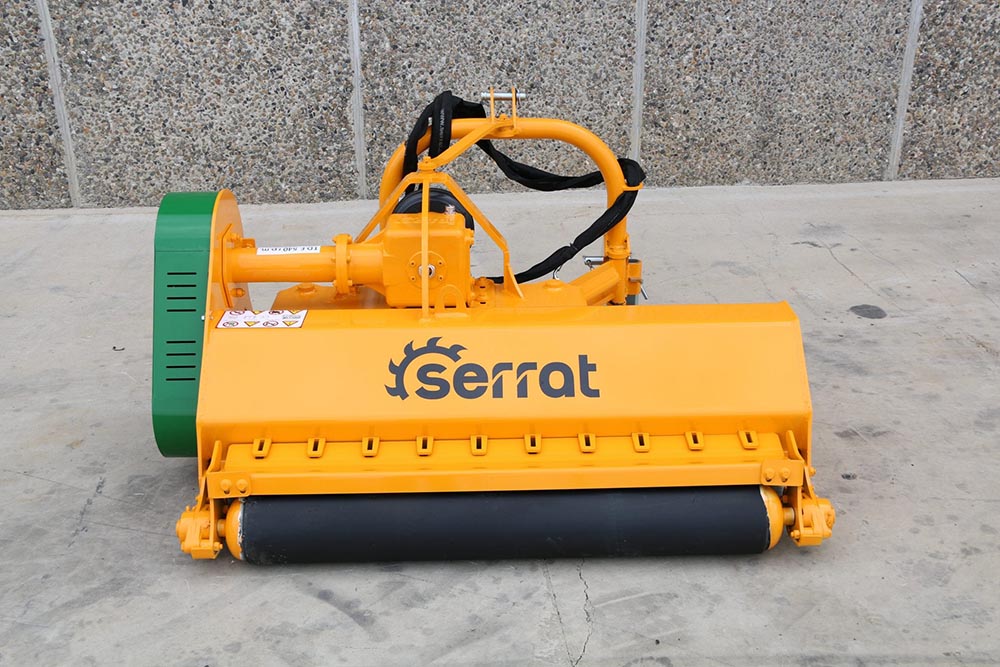

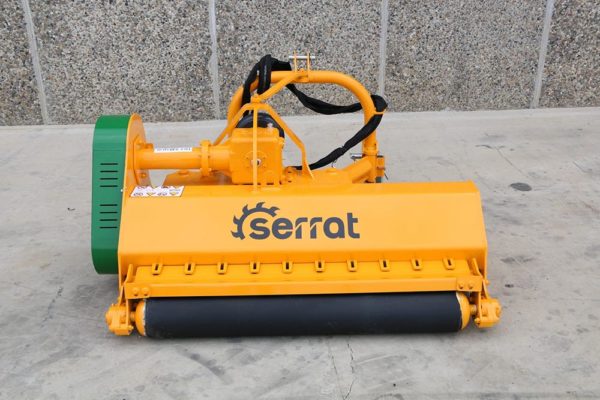

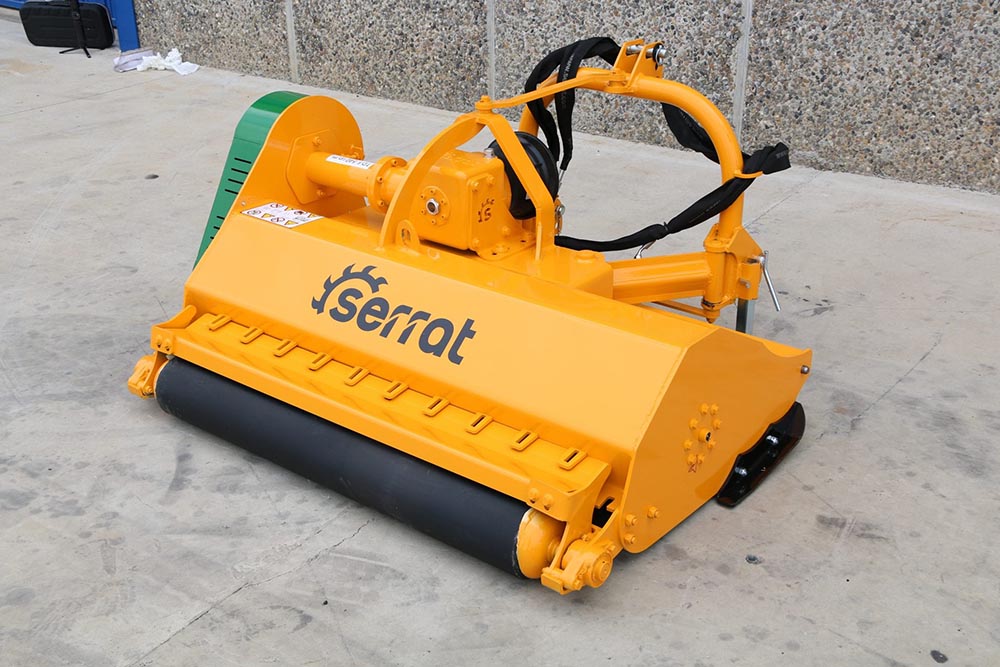

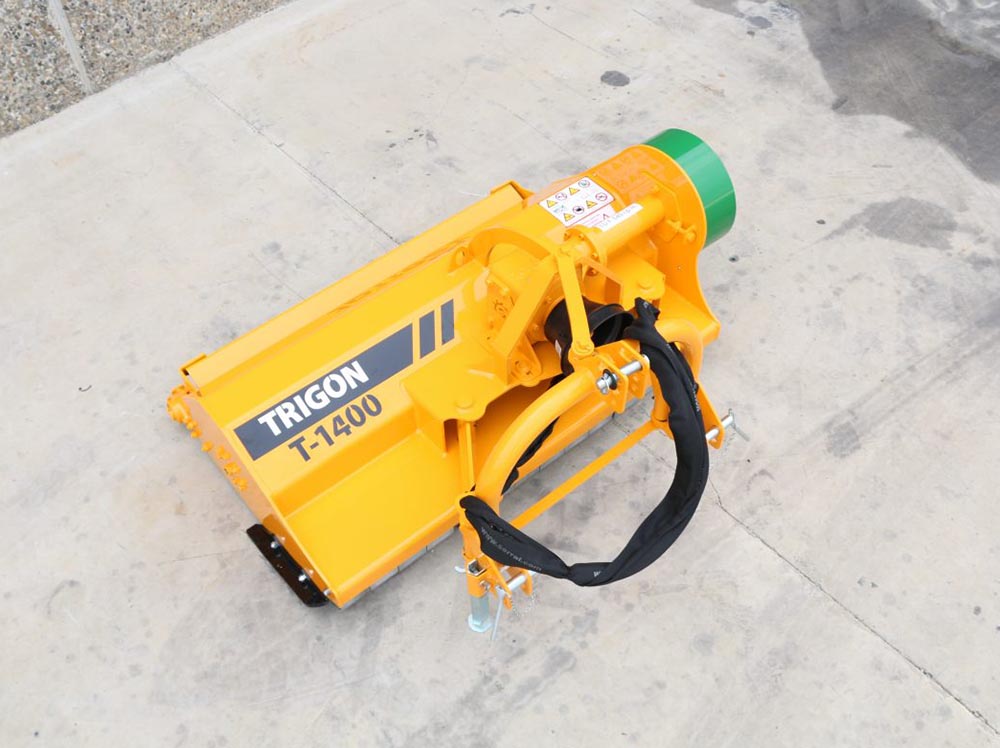

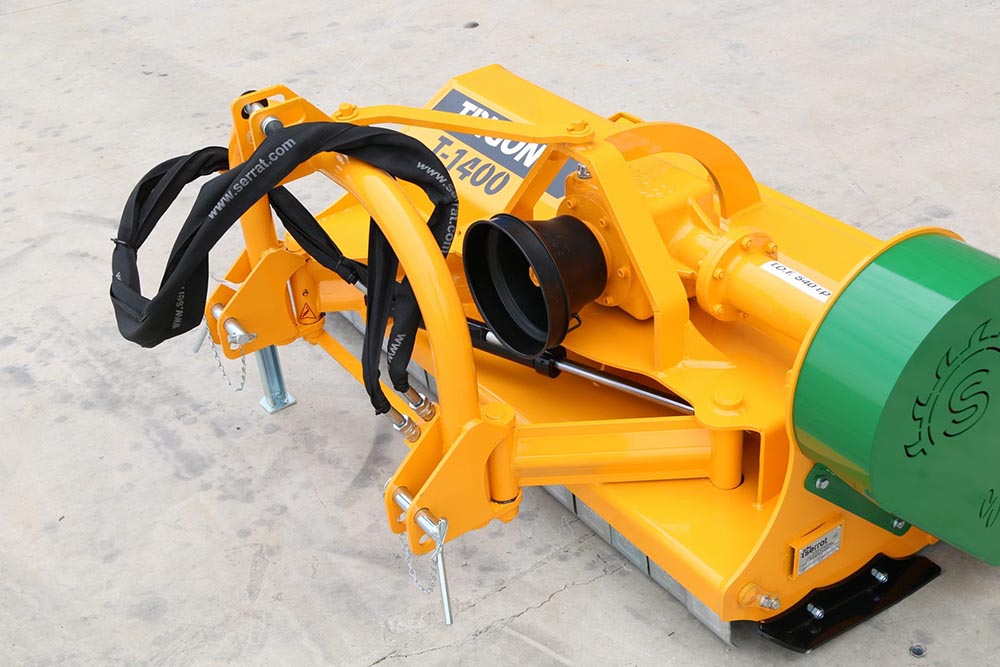

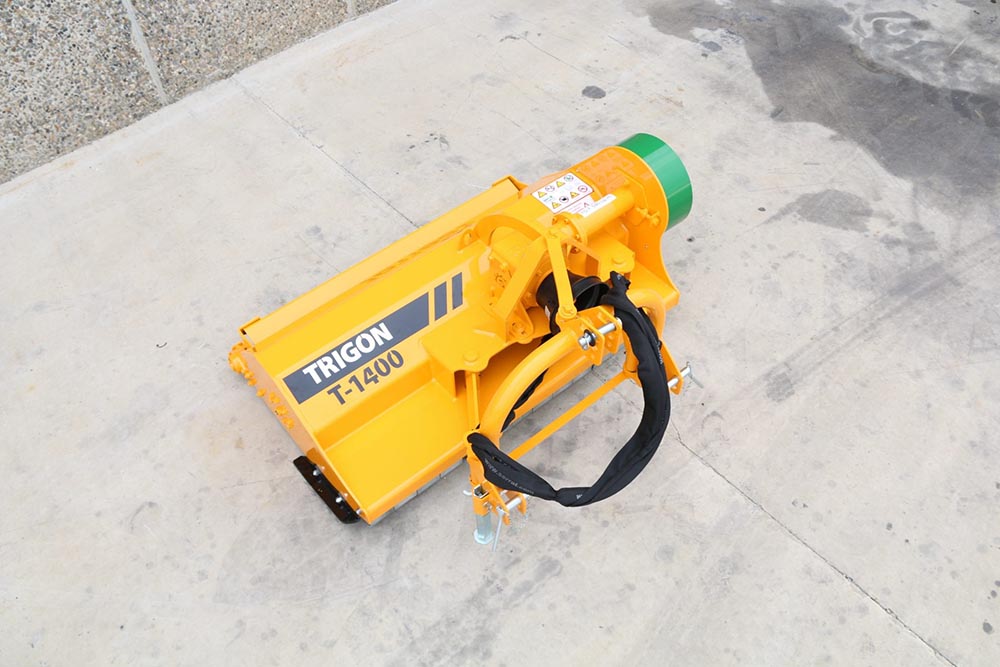

Trigon Side Shift

Mulcher to the service of the fruit sector, for the elimination of prunings and agricultural residues, as well as, for the  maintenance of green spaces.

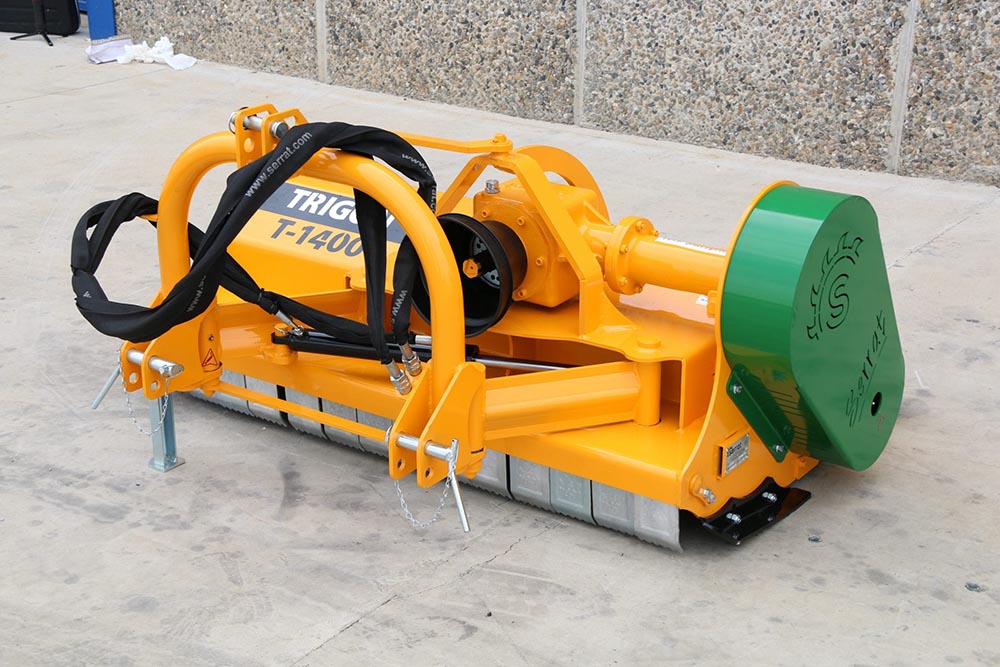

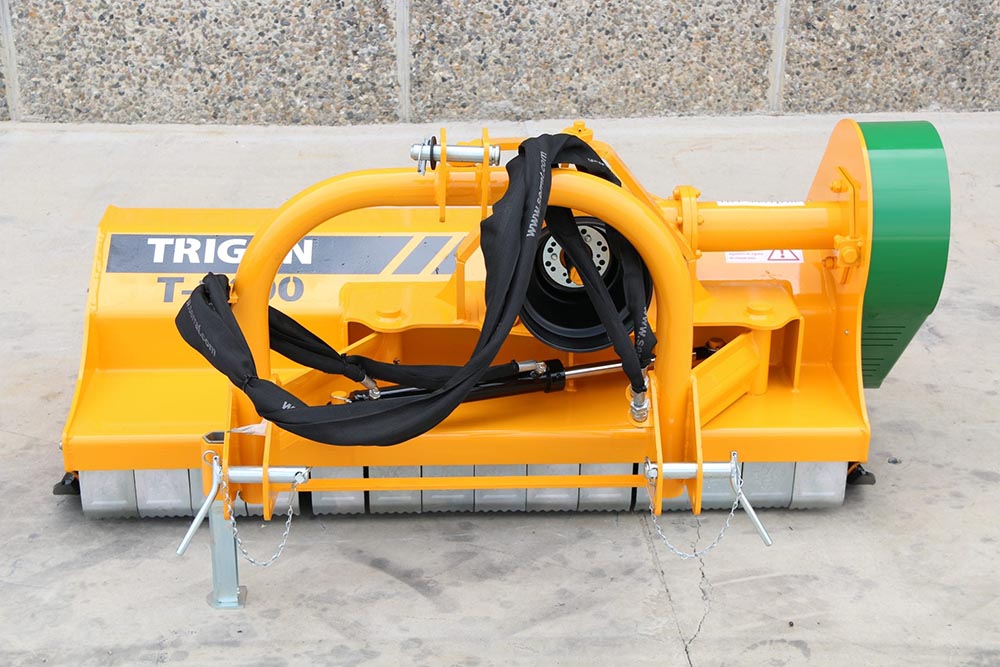

His composition moveable (parallelogram) allows the tractor to circulate along the center of the street and to the machine to produce the vegetable mantle next to the tree. The height of this mulcher is 420 mm.

Trigon Side Shift

Mulcher to the service of the fruit sector, for the elimination of prunings and agricultural residues, as well as, for the  maintenance of green spaces.

His composition moveable (parallelogram) allows the tractor to circulate along the center of the street and to the machine to produce the vegetable mantle next to the tree. The height of this mulcher is 420 mm.

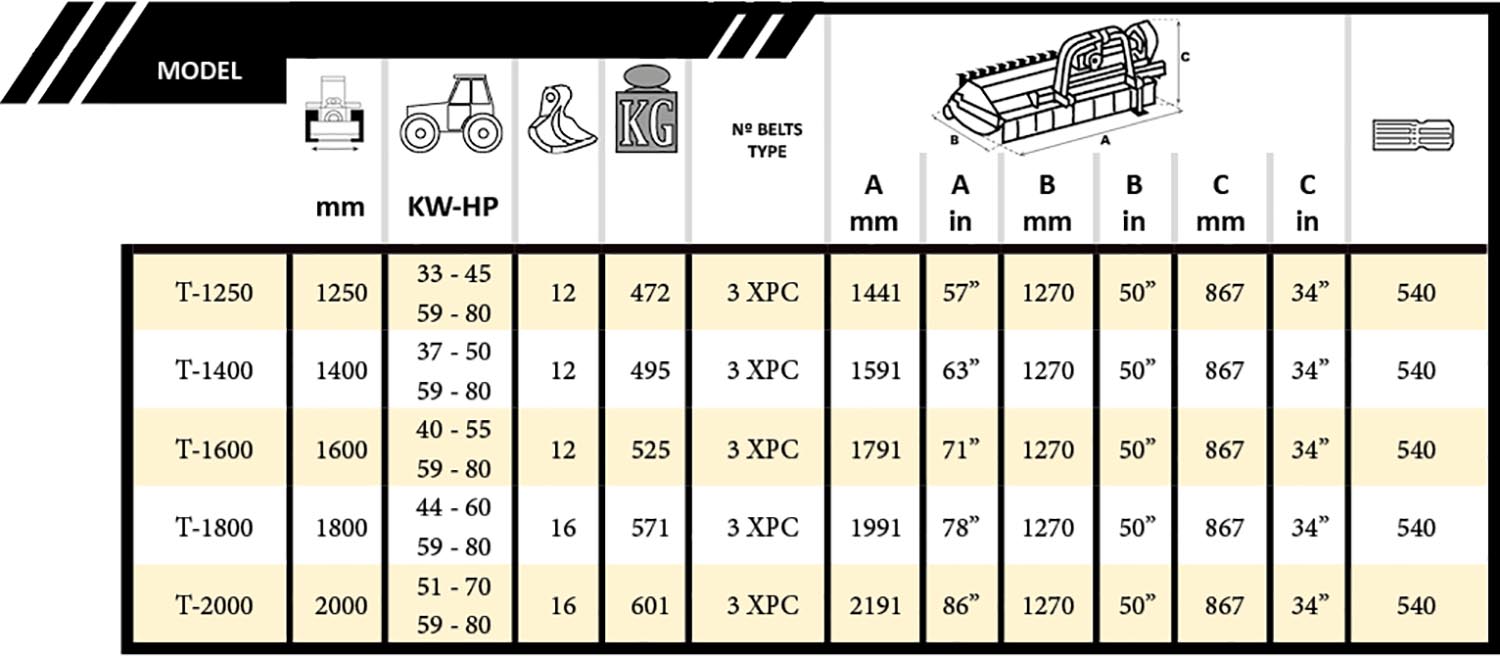

Caracteristics:

  • Steel-plate chassis, thickness 8 mm.

  • Tubular rotor of Ø 420 mm.

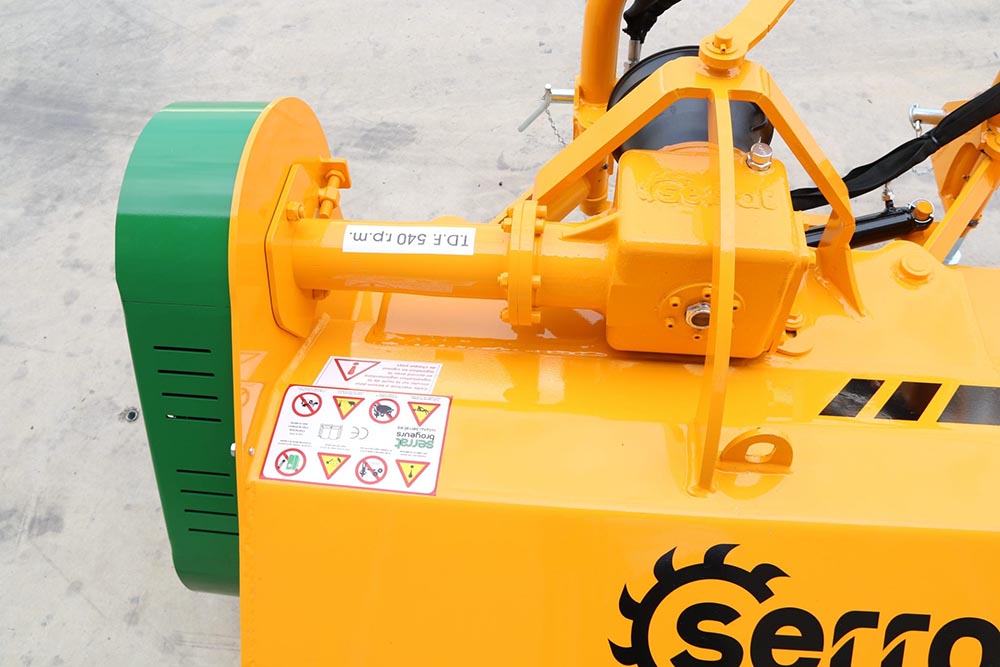

  • Gearbox SERRAT.

  • 3 XPC side belt transmission.

  • Forged agricultural hammers SERRAT.

  • Hammers guaranteed against breakage.

  • GIROSTOP System.

  • Supports of bearing rotor in steel.

  • High speed and high strength bearings.

  • Front protection curtain.

  • Obturations antiwire in rotor.

  • Double bearing on rear roller.

  • Rear height-adjustable roller Ø 180/210 mm.

  • PTO 540 rpm.

  • Rear roller cleaner.

  • Steel counter hammers.

  • Model built under EC Normative.

  • Safety indicators visible to personnel.



Advantages Serrat:

Advantages Serrat:

TRIGON side shift in action

Z

Front skid shoes

Z

Front wheels

Z

freewheel on sleeve

Z

front chains

Z

freewheel on transmision

Discover Trigon side shift
