Interpiquet Doble

Double mechanical driven swing arms mower conceived to mow around trees, under fences, posts, crash barrier, vineyards, trees, etc. without any damage. Allowing in a single work process to clean two lines of plantation in an average speed of 3km/hour. We work with a width of 6,30 meters with regard to the axis of the tractor (3,15 m in each sides).

Mechanical transmission by power take-off for tractors between 70 and 105 hp. Requiring a double effect hydraulics service for the adjustment of the air pressure and a simple effect service for the hydro pneumatic suspension.

Interpiquet Doble

Double mechanical driven swing arms mower conceived to mow around trees, under fences, posts, crash barrier, vineyards, trees, etc. without any damage. Allowing in a single work process to clean two lines of plantation in an average speed of 3km/hour. We work with a width of 6,30 meters with regard to the axis of the tractor (3,15 m in each sides).

Mechanical transmission by power take-off for tractors between 70 and 105 hp. Requiring a double effect hydraulics service for the adjustment of the air pressure and a simple effect service for the hydro pneumatic suspension.

Characteristics

File Interpiquet Doble

3 point hitch – cat. II.
Cutting diameter of 1.200 mm.
Cutting width of 6.200 mm – 6.500 mm.
Length for the transport of 3.400 mm.
3 retractable knives in each machine.
Air pressure adjustment (1 double effect’s service).
Pushing control by hydropneumatic suspension (adjustable).

Lower bowl of control on the ground and
rear wheels.
Pushing control by hydro pneumatic
suspension (2 hydraulics simple effect).
PTO 540 rpm.
Model built under EC Normative.
Safety indicators visible to personnel.

Advantages Serrat:

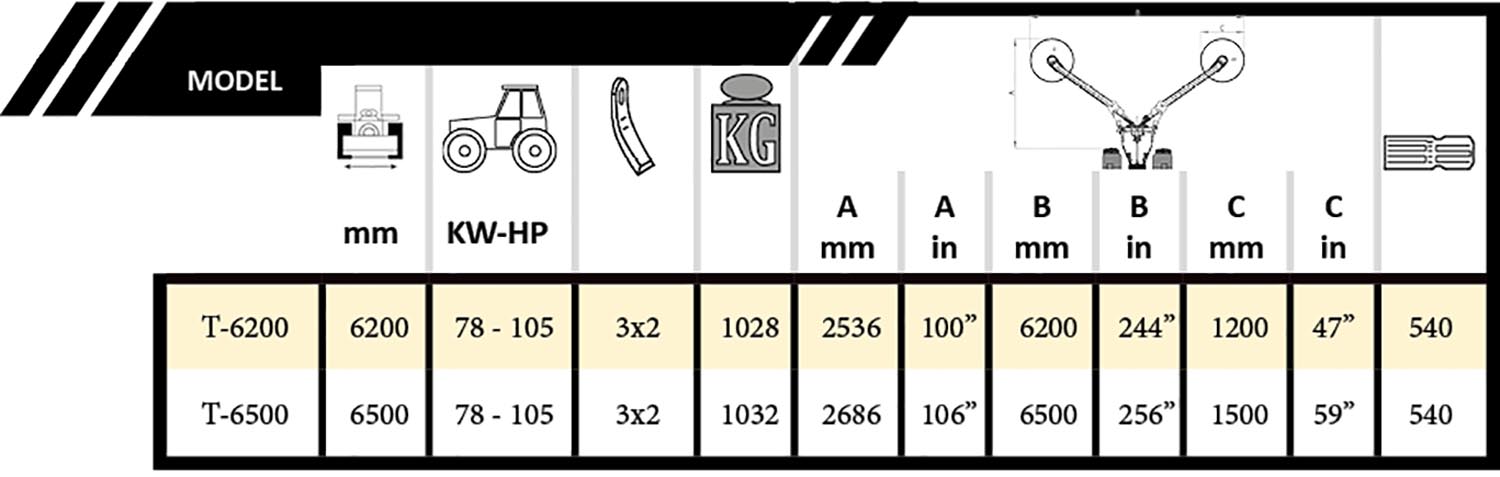

Download the table
