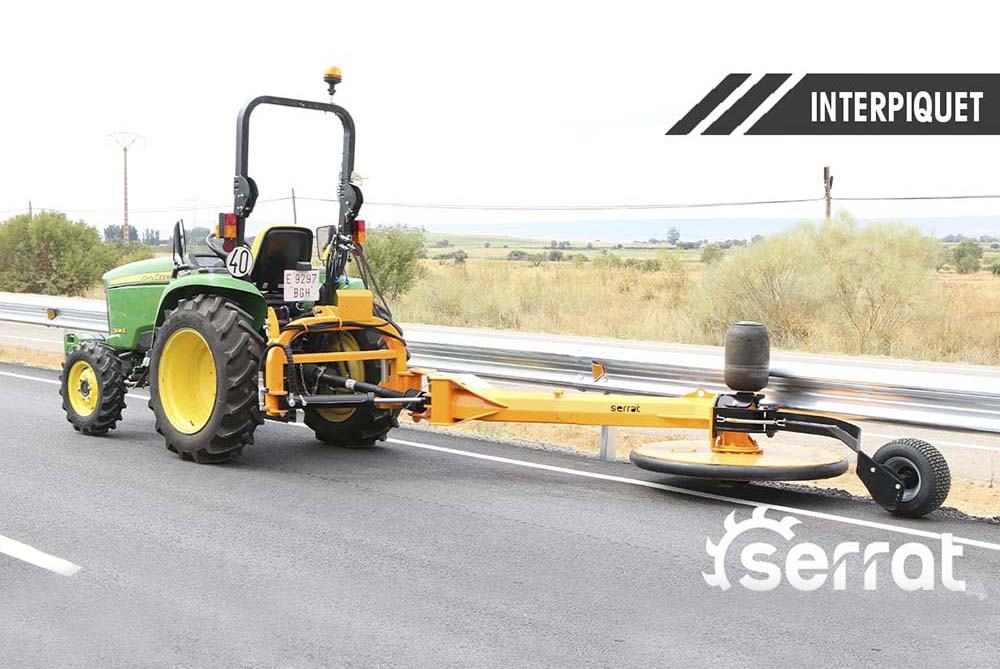

Mechanical driven swing arm mower can be used to mow around trees, posts, crash barrier, etc. without any damage.
Mechanical transmission by power take-off for tractors between 35 and 105 hp.
Requiring a double effect hydraulic’s service for the slope and a simple effect service for the hydropneumatic suspension.

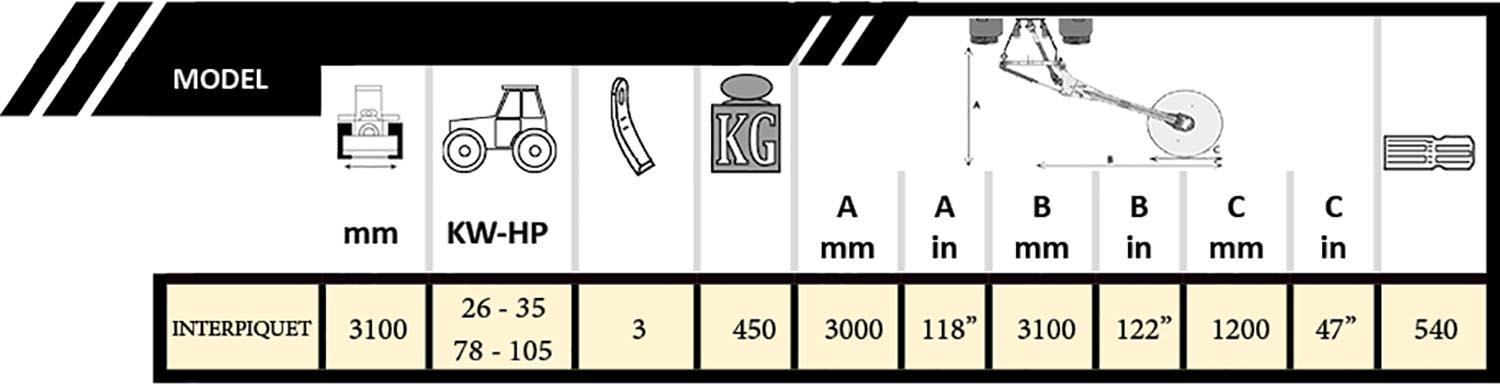

Characteristics
3 point hitch – cat. II.
Cutting width of 850 mm (32 inches) and 1.200 mm (47 inches).
Backwardation from the axis of the tractor of 2.000 mm (79 inches and 3.100 mm (122 inches).
Lenght for the transport of 2.300 mm (90 inches) and 3.000 mm (118 inches).
3 retractable knives.
Mechanical transmission by power take-off.
Pushing control by hydropneumatic suspension (adjustable).
Hydraulic recovery control (adjustable).
Hydraulic location according to the necessity activated from the tractor (1 double effect’s service).
PTO 540 rpm.
Rubber sleeve around the plate.
«Lower bowl of control on the ground and rear wheel.»
Height adjustable rear wheel.
Model built under EC Normative.
Safety indicators visible to personnel.
